Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KXD
  • Model Number: KXD-7.4v
  • Type: Li-Ion
  • Nominal Voltage: 7.4V
  • Size: 6 sizes for choice
  • Nominal Capacity: 1500mah-6800mah
  • charge mode: CC/CV
  • charge time: 3-7 hours
  • charger plug: American charger plug
  • temperature controlled: yes,3-5 stages
  • battery indicator: LED or Digital
  • charger output: 8.4v 1.2A
  • description: 7.4v temperature-controlled lithium battery
  • certificates: CE,ROHS,KC,TUV
  • advantage: alibaba assessed supplier,reliable and true information
  • cervices: OEM/ODM,24-hour online,fast delivery,etc.

Packaging & Delivery

Packaging Details Antistatic bag + white box + carton
Delivery Time 10 days

Specifications

smart rechargeable 7.4v temperature-controlled lithium battery
7 sizes for choice
vary in capacity
LED or Digital indicator

smart rechargeable 7.4v temperature-controlled lithium battery





Product Description



General Specification:
Nominal Voltage7.4V
Working Efficiency99%
Operating Voltage Range8.4V-6.0V
Load Resistance5Ω-200Ω
Charge Cut-off Voltage8.4V
Discharge Cut-off Voltage6.0V
Cycle Lifeabove 500 cycles
Internal Resistance
(Max, at 1000Hz.):
230 mΩ
Charge Temperature0°C~45°C;32°F~113°F
Discharge Temperature-20°C~60°C; -4°F~149°F
Storage Temperature-20°C~45°C;-4°F~113°F





There are 6 different sizes temerature-controlled lithium battery for your choice.

  •  Size 1:

15mm*48mm*65mm





ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V1500mAh(polymer)7.4V1500mAh15mm×48mm×65mm70g1. LED indicator
2. 3 temperature regulator
3. Pulse output
Heated shoes,
heated gloves,heated socks,heated kneepad,
therapy bra,heated bottle warmer



  •  Size 2:

21mm*48mm*70mm





ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V2200mAh(li-ion)7.4V2200mAh21mm×48mm×70mm120g1. LED indicator
2. 4 temperature regulator
3. Pulse output
Heated gloves,Far Infrared heated vest and waistcoat,
therapy waistband,
heated knee pad,
heated pants & trousers
KXD-7.4V2600mAh(li-ion)7.4V2600mAh130g
KXD-7.4V3000mAh(li-ion)7.4V3000mAh



  • Size 3:

 23mm×72mm×92mm







Heated clothing battery with LED battery indicator



ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V4400mAh(li-ion)7.4V4400mAh23mm×72mm×92mm230g1. LED indicator
2. 4 temperature regulator
3. Pulse output
heated clothes ,heated vests,
far infrared physiotherapeutic instrument,
infant heated pad
KXD-7.4V5200mAh(li-ion)7.4V5200mAh
KXD-7.4V6000mAh(li-ion)7.4V6000mAh





Heated clothing battery with digital battery indicator





ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V4400mAh(li-ion)7.4V4400mAh23mm×72mm×92mm230g1. Digital indicator
2. 5 temperature regulator
3. Pulse output
heated clothes ,heated vests,
far infrared physiotherapeutic instrument,
infant heated pad
KXD-7.4V5200mAh(li-ion)7.4V5200mAh
KXD-7.4V6000mAh(li-ion)7.4V6000mAh





 Air-conditioned battery with LED battery indicator





ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V4400mAh(air-conditioning clothes li-ion battery)7.4V4400mAh23mm×72mm×92mm230g
1.   LED indicator
2. 3 temperature regulator
3.   DC output

air conditioned clothes,fan clothes,cooling suits,rehabilitation equipment
KXD-7.4V5200mAh(air-conditioning clothes li-ion battery)7.4V5200mAh
KXD-7.4V6000mAh(air-conditioning clothes li-ion battery)7.4V6000mAh











  • Size 4:

23mm*72mm*140mm







ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD-7.4V6600mAh(li-ion)7.4V6600mAh23mm×72mm×140mm350g1. Digital indicator
2. 5 temperature regulator
3. Pulse output
4. 5V 1.2A USB

the whole body physical therapy heated clothes,heated clothes
far infrared physiotherapeutic instrument
infant heated pad,rehabilitation equipment
KXD-7.4V7800mAh(li-ion)7.4V7800mAh
KXD-7.4V9000mAh(li-ion)7.4V9000mAh



  •  Size 5 and 6:

23mm×62mm×100mm

23mm×74mm×107mm







ModelVoltage (V)Capacity(mAh)Thickness×Width×Length (±0.5mm)Weight   (g)Note     Application
KXD7.4V4000MAH     (polymer)7.4V4000mAh2mm×62mm×100mm197g
1. Digital indicator
2. 5 temperature regulator
3. Pulse output
4. 5V 2.1A USB
Heated gloves,Far Infrared heated vest and waistcoat,
therapy waistband,
heated knee pad,
infant heated pad
KXD7.4V5000MAH (polymer)7.4V5000mAh23mm×74mm×107mm240g
1. Digital indicator
2. 5 temperature regulator
3. Pulse output
4. 5V 2.1A USB
KXD7.4V4400MAH (li-ion)7.4V4400mAh23mm×74mm×107mm235g
KXD7.4V5200MAH (li-ion)7.4V5200mAh23mm×74mm×107mm
KXD7.4V5600MAH (li-ion)7.4V5600mAh23mm×74mm×107mm
KXD7.4V6000MAH   (li-ion)7.4V6000mAh23mm×74mm×107mm
KXD7.4V6800MAH   (li-ion)7.4V6800mAh23mm×74mm×107mm









Advantage



1.Long battery cycle life

2.small size, light weight

3.High Security

4.Pollution-fre

5.No memory effect

6.Smart Power Management

7.Digital Display

8.Four adjustable pulse outputs

9.Protection circuit inside





Application:

7.4v temperature-controlled lithium battery is mainly used for Far Infrared heated vest and waistcoat, therapy waistband,heated knee pad,heated pants & trousers , etc.







charger for 7.4v temperature-controlled lithium battery

Input Voltage RangeAC100V~240V 50/60Hz
Charge ModeCC/CV
PlugAmerican plug or customized
Output Voltage8.4V
Output Current1200mA
USBdual USB DC:1.35*3.5/7.0mm
Weight80g
Led Indicatorwith turnlight,the color will turn red to green when it's fully charged.
Charge Time3-4hours





Parts offtered



 7.4v smart temperature-controlled lithium battery +8.4v 1.2A output charger





Packaging & Shipping







Package:

Battery:

white box Size(per piece)30mm*82mm*107mm
Carton Size200mm*300mm*430mm
Package/Gross Weight80pcs/carton,11kg

 Charger



Package Sizewhite box:30mm*82mm*107mm
outer carton:200mm*300mm*430mm
Package/Gross Weight80pcs/carton,7.8Kg









Shipping: By air, by sea, by express.



Our Services



QC:

Strict QC quality control, our batteries are subjected to 5 times test before package.



Transport Report:

UN38.3 and MSDS both by air and by sea.



Price Terms:

FOB, CIF, EXWORK, etc.



Payment Term:

Paypal, TT, West Union.



Delivery Time:

3-7days for sample, 10-12days for standard order, 15-25days for customized order.



Shipping:

By air, by sea, by express.



Warrenty:

1 year for lipo and li-ion battery, 2 years for lifepo4 battery.



Certificates:

We have CE, ROHS, KC to support your business, and we also have UN38.3 and MSDS for battery shipping.

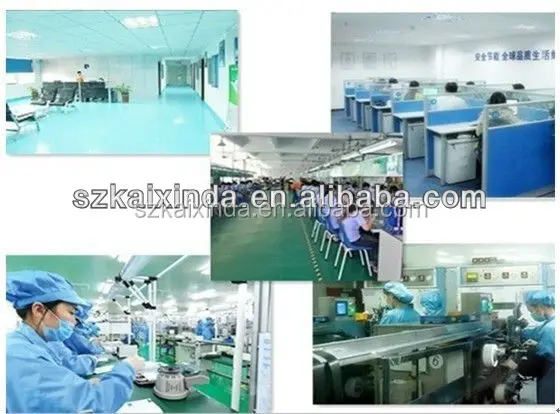

Company Information
About US:

KXD is a professional rechargeable battery manufacturer, which was founded in the year of 2009.

Our products including:

li-ion battery;

lifepo4 battery;

li polymer battery;

portable ups battery with case;

li-ion&li polymer heated clothing battery.

Our products are of high performance ,low self discharge,long cycle life ,good duration of use at both high temperature and low temperature,which are mainly and widely used for Mobile Devices,EV and E-bike,Medical Equipments, Heated Clothes,, Fishing Devices, Solar and Wind Power, Led Lighting, etc.

Equiped with ISO9000, QS9000, ISO14000 and OHSA18001 management system certification, our product is ROHS, CE, KC, UN38.3, MSDS approved. Our sales network expanded to corners all over the world in past years .











FAQ



How to order?

1. You tell us the demand of battery:

1). Capacity;

2). Voltage;

3). Size;

4). Working current;

5). Whether have DC plug, connector;

6). Whether need matching charger;

7). MOQ;



2. We quote according to your paramter.



3. We send you the PI after price negotiation.



4. You pay for the PI by Paypal, West Union, or TT.



5. We arrange the production for you.



6. We send the goods by sea, by air, or by FedEx, TNT, etc.



7. Meanwhile, we send the commercial invoice, B/L, AWB, or tracking number.





Contact Information:



If you are interested in the 7.4v temperature-controlled lithium battery, please feel free to contact me.
