Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KXD
  • Model Number: kxd-36v-10ah
  • Type: Li-Ion
  • Nominal Voltage: 36v
  • Size: 83mm*72mm*248mm
  • Nominal Capacity: 10ah
  • Description: 36v 10ah electric bike li ion battery
  • Cycle life: more than 500 times
  • Pack:: 18650 10s 5p
  • Discharge cut-off voltage: 30v
  • Continuous working current: within 10A
  • Charge cut-off voltage: 42v
  • Matching charger: output:42v 2-5A(DC)
  • DC plug or connector: customized
  • Certificates: CE,ROHS,UN38.3
  • OEM/ODM services: available

Packaging & Delivery

Packaging Details: bubble film+paper carton, <10kg per carton
Delivery Detail: Shipped in 7 days after payment

KXD rechargeable 36v 10ah electric bike li ion battery
Model:  kxd-36v-10ah

Continuous working current: 10A

Warrenty: 1 year

Product Description

specification:

product name

KXD rechargeable 36v 10ah electric bike li ion battery

Model kxd-36v-10ah
Rated Voltage

36v

Rated Capacity10ah
charge Current0.5c
discharge current1c
Working Efficiency≥99%
Operating Voltage Range30V-42V
Over-charge Protection Voltage42V±0.5
Over-discharge Protection Voltage

30V±0.1

Cycle Lifeabove 500 cycles
Battery Dimention(mm)83mm*72mm*248mm
Battery Weightabout 2.3kg
Charge Temperature0°C~45°C;32°F~113°F
Discharge Temperature-20°C~60°C; -4°F~149°F
Storage Temperature-20°C~45°C;-4°F~113°F
Battery colorBLUE
Storage Performance75% power remains for one year
Options

1. plug or connector

2. led battery indicator

3. ABS battery housing

4. Power switch



 Protection function:

over-charge,over-discharge,over-current,short-circuit,temperature tolerance,etc.



Advantages of li ion battery:

1. Long cycle life

2. No memory effect

3. High energy density

4. Light weight, small size

5. Competitive price& high quality

6. Good consistency, low self discharge

7. With short-circuit production function, safe and reliable

8. High working voltage for single battery cells pollution-free

9. high Capacity, small resistance,suitable voltage, steady performance



Application of the li ion battery:

  • dc motor
  • electric bikes
  • electric scooter
  • electric vehicles
  • home appliance
  • emergency power
  • smart robort system
  • communication devices



Reference Picture:

1. 36v 10ah electric bike li ion battery:





 2. 42v  2A matching charger:





Related Products



More Products:

         Li-ion battery 36V 14Ah                   Li-ion battery 36V 15Ah                     Li-ion battery 36V 20Ah

       LiFePO4 Battery 36V 9AH                    LiFePO4 Battery 36V 20AH                   48V 20Ah Lithium battery

Packaging & Shipping



Package:

1.each li ion battery should be individually packaged in anti-static film+small box.

2.If with charger, should be with anti-static bag too.

3.it should be packaged in outer paper carton in the end.

4.each carton can't be above 10kg



Shipping:

  • For samples and small order, send via TNT, FedEx, post service,etc;
  • For order above 1CBM, by air, or by sea;
  • Or other customized delivery way

Note:  Battery is restricted goods, so the shipping is different from that of general goods,

1. To avoid a waste of time and money, " Freight collect" is unacceptable.

2. for small order within 1kg, the shipping cost will be charged as 1kg, non-negotiable.

3. We can send battery within 2kg to Brazil by post service.

Our Services



Terms:



Price:  FOB, CIF, EXW, DDP, DDU, etc;



Payment: TT, Paypal, West Union, Cash, L/C;



Lead time: 7-10days for samples and small orders, 15-30days for customized order.



Warrenty: 1 year for lipo and li-ion battery,  2 years for lifepo4 order.



Qtuotation: The price on the website is for reference only, please take online quotation and reply of inquiry as standard.

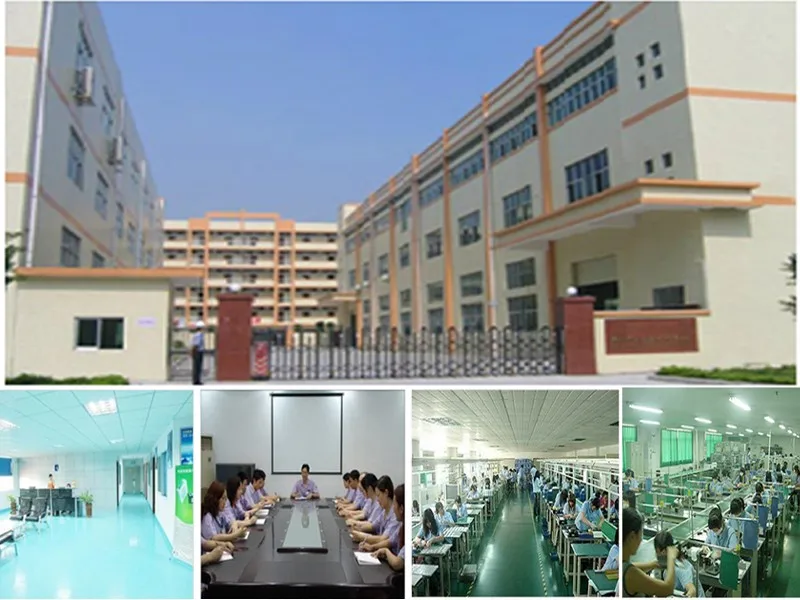

Company Information



About Us:

KXD  is a professional manufacturer of li ion battery,  li polymer battery pack , lifepo4 battery, heated clothes battery, ups battery, chargers, etc.

Our products are of high performance ,low self discharge,long cycle life ,good duration of use at both high temperature and low temperature,which are mainly and widely used for Mobile Devices,EVs and E-bikes,Medical Equipments, heated clothes, solor and wind powers, ups, DC motors, power tools,etc.
Equiped with ISO9000, QS9000, ISO14000 and OHSA18001 management system certification, our products are ROHS,CE, KC, MSDS, UN38.3 approved.Our sales network expanded to corners all over the world in past years .

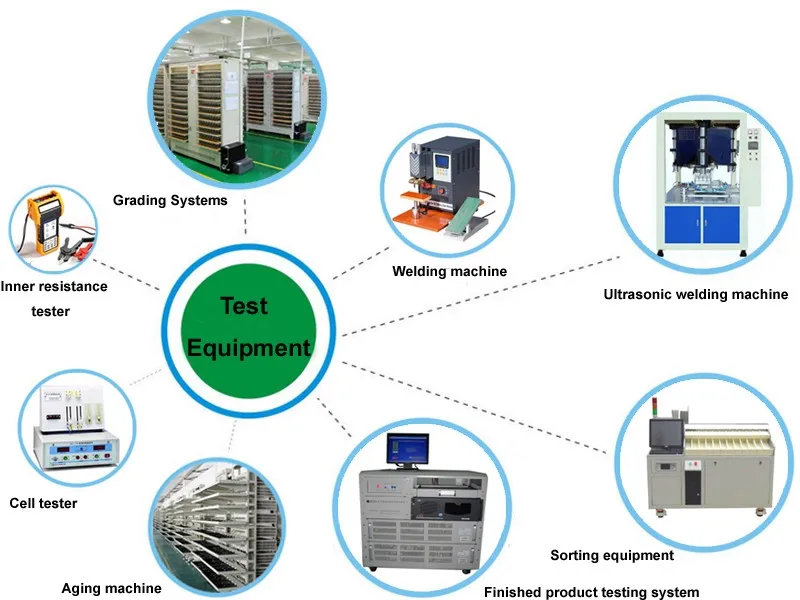

Production Flow:



Certifications








FAQ

1.Q: Do you accept partial shippment?

    A: yes, we can arrange the order and shipping schedule for you.

2. Q: How to order?

    A: 1) you tell us the capacity, voltage, working current, size of the battery.

        2) if necessary, please send the drawing or picture of your connector, dc plug, enclosure.

        3) we quote according to your paramter, MOQ, delivery time, and other relevant demands.

        4) We send the PI to you after counter offer, if no problem you arrange the payment in time.

        5) we arrange the production and send you the goods according to PI dlivery time.

        6) we send you tracking number( for sample), custom clearance documents.



3. Q: Could I have the charger?

    A: Of cource. But we often quote the price separately, if you need charger, please don't hesitate to tell us.

If you are interested in this li ion battery, please feel free to contact us.
